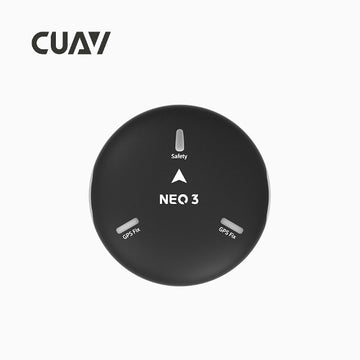

CUAV Neo 3 GPS Module

  • Type:
    GPS Module
  • Availability:
    In Stock
  • SKU:
    DA-GPS-0610
Equipped with Ublox NEO-M9N GNSS, it supports concurrent tracking of four major satellite systems for reliable performance in complex environments. Comes with a dedicated multi-system antenna and integrates a compass, status LED, buzzer, and more in one compact module.
Regular price Rs. 12,000.00
Sale price Rs. 12,000.00 Regular price
Unit price
Payment options:
    CUAV Neo 3 GPS Module

    CUAV Neo 3 GPS Module

    Regular price Rs. 12,000.00
    Sale price Rs. 12,000.00 Regular price
    Unit price
    Product description
    Shipping & Return
    Product description

    NEO 3 uses a hardware design similar to NEO v2, and upgrades the GNSS navigation module to the M9N module that supports the four mainstream satellite systems of Beidou, GPS, Galileo and Glonass. The positioning accuracy has been significantly improved. It is a high Cost-effective unmanned system positioning and navigation module. It integrates compass, flight controller status light, buzzer, and safety switch in one; it has the characteristics of high sensitivity and strong anti-interference.



    Specification Details
    Processor -
    Compass IST8310
    GNSS Receiver UBLOX NEO M9N
    RGB Drive NC5623C
    Buzzer Passive buzzer
    Safety Switch Physical button
    Supported GNSS Beidou, Galileo, GLONASS, GPS
    GNSS Augmentation System SBAS: WAAS, EGNOS, MSAS
    QZSS: L1s (SAIF)
    Other: RTCM3.3
    Concurrent GNSS 4
    Frequency Bands GPS: L1C/A
    GLONASS: L10F
    Beidou: B1I
    Galileo: E1B/C
    Horizontal Accuracy 2.0 m
    Speed Accuracy 0.05 m/s
    Navigation Update Rate 25 Hz (Max)
    Acquisition Cold Start: 24s
    Hot Start: 2s
    Aided Start: 2s
    Max Satellites 32+
    Sensitivity Tracking & Navigation: -167 dBm
    Cold Start & Hot Start: -148 dBm
    Reacquisition: -160 dBm
    Protocol UART + IO + I2C
    Port Type GHR-10V-S
    Supported Flight Controllers CUAV series, Pixhawk series
    Wave Filtering SAW + LNA + SAW
    EMI/RFI Protection Yes (EMI + RFI)
    Firmware Upgrade Supported
    Flight Control Support Ardupilot / PX4*
    *PX4 is still being adapted
    Input Voltage 5V
    Operating Temperature -10°C to 70°C
    Size 60 x 60 x 16 mm
    Weight 33g
