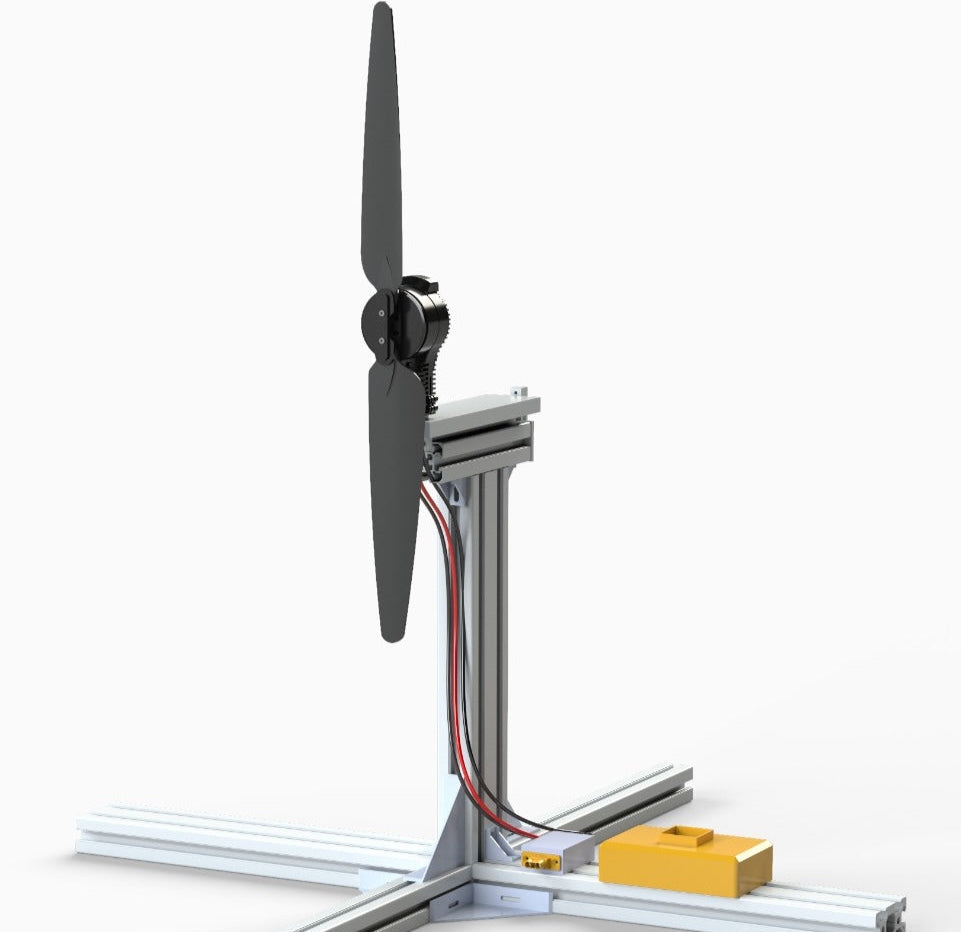

DA-30KGF Thrust Stand
The DA-30KGF motor and propeller test stand is designed for medium UAVs, supporting propellers up to 40 inches.
Description
The DA-30KGF motor and propeller test stand is designed for medium UAVs, supporting propellers up to 40 inches. The DA-30KGF motor and propeller test stand is designed for medium UAVs, supporting propellers up to 40 inches. It accurately measures thrust, voltage, current, RPM, motor temperature, and propeller efficiency, helping optimize drone propulsion systems for maximum efficiency and extended flight time.
Propulsion System Specifications
| Suggested Max Thrust | ＞ 3kg |
|---|---|
| Max Thrust | 30KG |
| Max Propeller | 40 inch |
| Temperature Range | -20C - 120C |
| Current | 0-150A |
| Voltage | 5-65V |
| RPM | 30-15000 RPM |

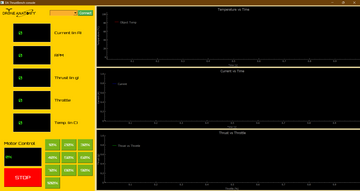

DA Console Software for Thurst Test
